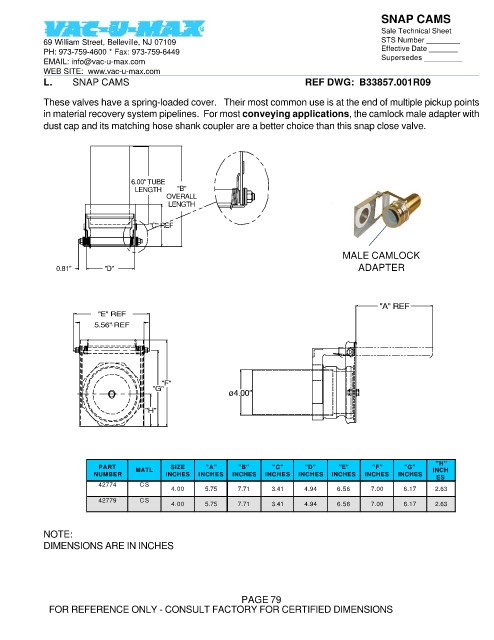

SNAP CAMS
Sale Technical Sheet
69 William Street, Belleville, NJ 07109 STS Number ________
PH: 973-759-4600 * Fax: 973-759-6449 Effective Date _______
EMAIL: info@vac-u-max.com Supersedes _________
WEB SITE: www.vac-u-max.com
L. SNAP CAMS REF DWG: B33857.001R09
These valves have a spring-loaded cover. Their most common use is at the end of multiple pickup points
in material recovery system pipelines. For most conveying applications, the camlock male adapter with
dust cap and its matching hose shank coupler are a better choice than this snap close valve.
6.00" TUBE
LENGTH "B"
OVERALL
LENGTH
"C" REF
MALE CAMLOCK
0.81" "D" ADAPTER
"A" REF
"E" REF
5.56" REF
"F"
"G"
ø4.00"
"H"
"H"
PART MATL SIZE "A" "B" "C" "D" "E" "F" "G" INCH
NUMBER INCHES INCHES INCHES INCHES INCHES INCHES INCHES INCHES ES
42774 C S
4.00 5.75 7.71 3.41 4.94 6.56 7.00 6.17 2.63
42779 C S
4.00 5.75 7.71 3.41 4.94 6.56 7.00 6.17 2.63
NOTE:
DIMENSIONS ARE IN INCHES
PAGE 79
FOR REFERENCE ONLY - CONSULT FACTORY FOR CERTIFIED DIMENSIONS
