annotating StairS 665

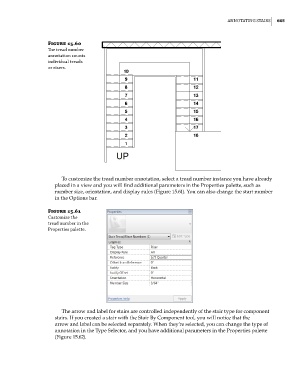

Figure 15.60
The tread number
annotation counts
individual treads
or risers.

To customize the tread number annotation, select a tread number instance you have already
placed in a view and you will find additional parameters in the Properties palette, such as
number size, orientation, and display rules (Figure 15.61). You can also change the start number
in the Options bar.

Figure 15.61
Customize the
tread number in the
Properties palette.

The arrow and label for stairs are controlled independently of the stair type for component
stairs. If you created a stair with the Stair By Component tool, you will notice that the
arrow and label can be selected separately. When they’re selected, you can change the type of
annotation in the Type Selector, and you have additional parameters in the Properties palette
(Figure 15.62).

c15.indd 665 5/3/2014 11:31:44 AM
