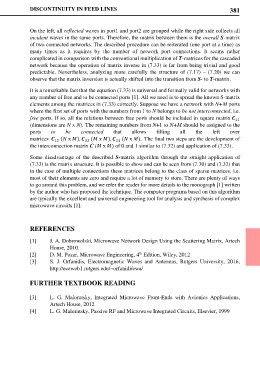

DISCONTINUITY IN FEED LINES                                             381



            On the left, all reflected waves in port1 and port2 are grouped while the right side collects all
            incident waves in the same ports. Therefore, the matrix between them is the overall S-matrix
            of two connected networks. The described procedure can be reiterated (one port at a time) as
            many times as  it requires by  the number of  network  port  connections.  It seems rather
            complicated in comparison with the conventional multiplication of T-matrices for the cascaded
            network because the operation of matrix inverse in (7.33) is far from being trivial and good
            predictable. Nevertheless, analyzing  more carefully the structure of (7.17) – (7.20) we can
            observe that the matrix inversion is actually shifted into the transition from S- to T-matrix.
            It is a remarkable fact that the equation (7.33) is universal and formally valid for networks with
            any number of free and to be connected ports [1]. All we need is to spread the known S-matrix
            elements among the matrices in (7.33) correctly. Suppose we have a network with N+M ports
            where the first set of ports with the numbers from 1 to N belongs to be not interconnected, i.e.
            free ports. If so, all the relations between free ports should be included in square matrix
                                                                                      11
            (dimensions are N x N). The remaining numbers from N+1 to N+M should be assigned to the
            ports   to   be   connected   that  allows   filling  all   the   left  over
            matrices    ( x ),   ( x ),   ( x ).  The final two steps are the development of
                                           21
                     12
                                22
            the interconnection matrix C ( x ) of 0 and 1 similar to (7.32) and application of (7.33).
            Some  disadvantage of the described  S-matrix algorithm through the straight  application  of
            (7.33) is the matrix structure. It is possible to show and can be seen from (7.30) and (7.32) that
            in the case of multiple connections these matrices belong to the class of sparse matrices, i.e.
            most of their elements are zero and require a lot of memory to store. There are plenty of ways
            to go around this problem, and we refer the reader for more details to the monograph [1] written
            by the author who has proposed the technique. The computer programs based on this algorithm
            are typically the excellent and universal engineering tool for analysis and synthesis of complex
            microwave circuits [1].



            REFERENCES

            [1]    J. A. Dobrowolski, Microwave Network Design Using the Scattering Matrix, Artech
                   House, 2010.
            [2]    D. M. Pozar, Microwave Engineering, 4  Edition, Wiley, 2012
                                                   th
            [3]    S.  J. Orfanidis, Electromagnetic Waves and  Antennas,  Rutgers University, 2016,
                   http://eceweb1.rutgers.edu/~orfanidi/ewa/

            FURTHER TEXTBOOK READING

            [3]    L.  G. Maloratsky, Integrated Microwave  Front-Ends  with Avionics Applications,
                   Artech House, 2012
            [4]    L. G. Maloratsky, Passive RF and Microwave Integrated Circuits, Elsevier, 1999
