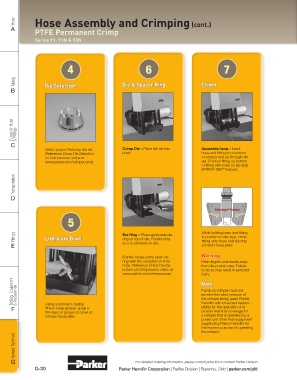

Page 376 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose Hose Assembly and Crimping (cont.)
A PTFE Permanent Crimp

Series 91, 91N & 93N

4 6 7

Tubing Die Selection Die & Spacer Ring Crimp
B

Coiled Air Hose & Fittings

C
Select proper Parkrimp die set. Crimp Die – Place die set into Assemble hose – Insert
(Reference Crimp Die Selection bowl. hose and fitting from bottom
on Crimpsource online at of crimper and up through die
www.parker.com/crimpsource) set. Position fitting so bottom
of fitting skirt rests on die step
(PARKALIGN feature).
®
Transportation

D

®
Parkalign Feature
5

Fittings Lubricate Bowl Die Ring – Place applicable die While holding hose and fitting
in position on die step, crimp
ring on top of die. Position ring
fitting onto hose until die ring
E so it is centered on die. contacts base plate.
(Parflex hoses utilize silver die Warning
ring with the exception of HTB Keep fingers and hands away
hose. Reference Crimp Die Se- from die-pusher area. Failure
lection on Crimpsource online at to do so may result in personal
www.parker.com/crimpsource) injury.
Tooling, Equipment & Accessories Note

Pump on crimper must not
exceed the rated pressure of
the crimper being used. Parker
sibility for the operation of or
lithium-base grease, apply a
F Using a premium, quality, Hannifin will not accept respon-
thin layer of grease on bowl of provide warranty coverage for
crimper base plate. a crimper that is operated by a
power unit other than equipment
supplied by Parker Hannifin for
the express purpose of operating
the crimper.
General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
