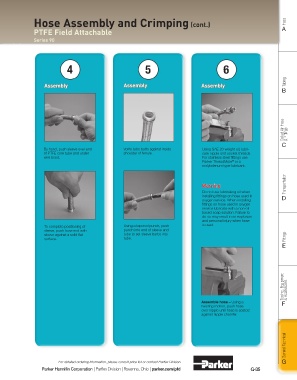

Hose Assembly and Crimping (cont.) Hose
PTFE Field Attachable A
Series 90
4 5 6
Assembly Assembly Assembly Tubing
B
Coiled Air Hose & Fittings
C
By hand, push sleeve over end Verify tube butts against inside Using SAE 20 weight oil, lubri-
of PTFE core tube and under shoulder of ferrule. cate nipple and socket threads.
wire braid. For stainless steel fittings use
®
Parker ThreadMate or a
molybdenum type lubricant.
Warning Transportation
Do not use lubricating oil when
installing fittings on hose used in D
oxygen service. When installing
fittings on hose used in oxygen
service lubricate with a non-oil
based soap solution. Failure to
do so may result in an explosion
and personal injury when hose
To complete positioning of Using a tapered punch, push is used.
sleeve, push hose end with punch into end of sleeve and
sleeve against a solid flat tube to set sleeve barbs into Fittings
surface. tube.
E
Tooling, Equipment & Accessories
Assemble hose – Using a F
twisting motion, push hose
over nipple until hose is seated
against nipple chamfer.
General Technical
For detailed ordering information, please consult price list or contact Parflex Division. G
