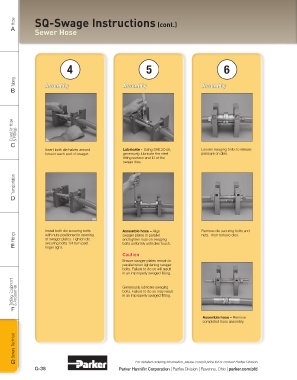

Page 384 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose SQ-Swage Instructions (cont.)
A Sewer Hose

4 5 6

Tubing Assembly Assembly Assembly
B

Coiled Air Hose & Fittings

C
Insert both die halves around Lubricate - Using SAE 20 oil, Loosen swaging bolts to release
hose in each end of swager. generously lubricate the steel pressure on dies.
fitting surface and ID of the
swage dies.

Transportation

D

Install both die securing bolts Assemble hose – Align Remove die securing bolts and
Fittings with nuts positioned in opening swager plates in parallel nuts. Then remove dies.
and tighten nuts on swaging
of swager plates. Tighten die
E securing bolts 1/4 turn past bolts uniformly until dies touch.
finger tight.
Caution
Ensure swager plates remain in
parallel when tightening swager
bolts. Failure to do so will result
in an improperly swaged fitting.
Tooling, Equipment & Accessories Generously lubricate swaging

bolts. Failure to do so may result
in an improperly swaged fitting.

F
Assemble hose – Remove
completed hose assembly.

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
G-38 Parker Hannifin Corporation | Parflex Division | Ravenna, Ohio | parker.com/pfd
