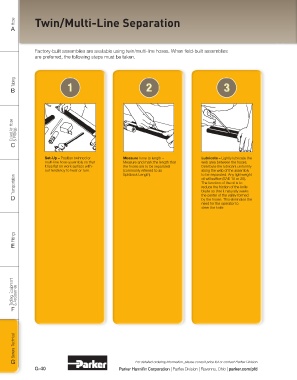

Hose Twin/Multi-Line Separation
A

Factory-built assemblies are available using twin/multi-line hoses. When field-built assemblies
are preferred, the following steps must be taken.

Tubing
B 1 2 3

Coiled Air Hose & Fittings

C

Set-Up – Position twinned or Measure hose to length – Lubricate – Lightly lubricate the
multi-line hose assembly so that Measure and mark the length that web area between the hoses.
it lies flat on work surface with- the hoses are to be separated Distribute the lubricant uniformly
out tendency to twist or turn. (commonly referred to as along the web of the assembly
Splitback Length). to be separated. Any lightweight
Transportation The function of the oil is to
oil will suffice (SAE 10 or 20).
reduce the friction of the knife
the center of the valley formed
D blade so that it naturally seeks
by the hoses. This eliminates the
need for the operator to
steer the knife.

Fittings
E

Tooling, Equipment & Accessories

F

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
