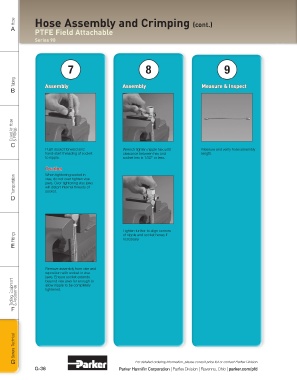

Hose Hose Assembly and Crimping (cont.)
A PTFE Field Attachable

Series 90

7 8 9

Tubing Assembly Assembly Measure & Inspect
B

Coiled Air Hose & Fittings

C
Push socket forward and Wrench tighten nipple hex until Measure and verify hose assembly
hand-start threading of socket clearance between hex and length.
to nipple. socket hex is 1/32" or less.
Caution
When tightening socket in
Transportation jaws. Over tightening vise jaws
vise, do not over tighten vise
will distort internal threads of
D socket.

Tighten further to align corners
Fittings of nipple and socket hexes if
necessary.
E

Remove assembly from vise and
reposition with socket in vise
jaws. Ensure socket extends
Tooling, Equipment & Accessories allow nipple to be completely
beyond vise jaws far enough to
tightened.

F

General Technical

G For detailed ordering information, please consult price list or contact Parflex Division.
