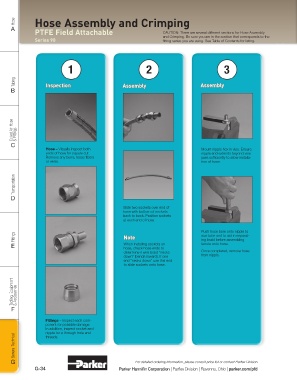

Page 380 - Parker Parflex Thermoplastic & Fluoropolymer Products Hose, Tubing, & Fittings 2017 - Cat 4460

Hose Hose Assembly and Crimping
A PTFE Field Attachable CAUTION: There are several different sections for Hose Assembly

Series 90 and Crimping. Be sure you are in the section that corresponds to the
fitting series you are using. See Table of Contents for listing.

1 2 3

Tubing Inspection Assembly Assembly
B

Coiled Air Hose & Fittings

C
Hose – Visually inspect both Mount nipple hex in vise. Ensure
ends of hose for square cut. nipple end extends beyond vise
Remove any burrs, loose fibers jaws sufficiently to allow installa-
or wires. tion of hose.

Transportation

D

Slide two sockets over end of
hose with bottom of sockets
back to back. Position sockets
at each end of hose.

Push hose bore onto nipple to
Fittings Note size tube and to aid in separat-
ing braid before assembling
E When installing sockets on ferrule onto hose.
hose, check hose ends to
determine if wire braid “necks Once completed, remove hose
down” (bends inward). If one from nipple.
end “necks down” use this end
to slide sockets onto hose.

Tooling, Equipment & Accessories

F

Fittings – Inspect each com-
ponent for possible damage.
In addition, inspect socket and
nipple for a through-hole and
General Technical
threads.

G For detailed ordering information, please consult price list or contact Parflex Division.
