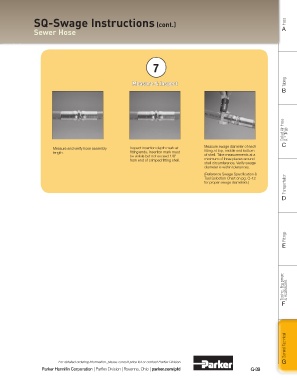

SQ-Swage Instructions (cont.) Hose
Sewer Hose A

7

Measure & Inspect Tubing
B

Coiled Air Hose & Fittings

Measure and verify hose assembly Inspect insertion depth mark at Measure swage diameter of each C
fitting at top, middle and bottom
length. fitting ends. Insertion mark must
be visible but not exceed 1/8" of shell. Take measurements at a
from end of crimped fitting shell. minimum of three places around
shell circumference. Verify swage
diameter is within tolerances.
(Reference Swage Specification &
Transportation
Tool Selection Chart on pg. G-42
for proper swage diameters.)
D

Fittings
E

Tooling, Equipment & Accessories

F

General Technical

For detailed ordering information, please consult price list or contact Parflex Division. G
