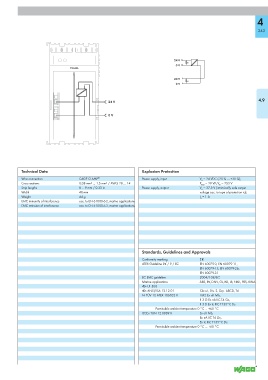

4
343
24 V
0 V
750-606
24 V
0 V
4.9
24 V
0 V
Technical Data Explosion Protection
Wire connection CAGE CLAMP ® Power supply, input V n = 24 VDC (-25 % … +30 %);
Cross sections 0.08 mm² ... 1.5 mm² / AWG 28 ... 14 P max = 29 W; V m = 253 V
Strip lengths 8 ... 9 mm / 0.33 in Power supply, output V o = 27.3 V (intrinsically safe output
Width 48 mm voltage acc. to type of protection ia);
Weight 44 g I n = 1 A
EMC immunity of interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications
Standards, Guidelines and Approvals
Conformity marking 1
ATEX Guideline 94 / 9 / EC EN 60079-0, EN 60079-11,
EN 60079-15, EN 60079-26,
EN 60079-31
EC EMC guideline 2004/108/EC
Marine applications ABS, BV, DNV, GL, KR, LR, NKK, PRS, RINA
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 12 ATEX 106032 X I M2 Ex d I Mb,
II 3 G Ex nA IIC T4 Gc,
II 3 D Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 12.0039 X Ex d I Mb,
Ex nA IIC T4 Gc,
Ex tc IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
