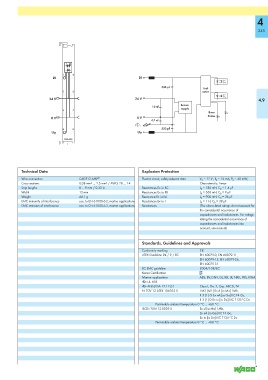

Page 347 - Wago_AutomationTechnology_Volume3_2015_US.pdf

4

345

1 5
DI DI

330 pF
Eval-
2 6 uation
24 V 24 V 4.9
Sensor
10 nF
supply
3 7
Error
Status
0 V 0 V
4.7 nF
4 8 330 pF
U V U V
750-435

Technical Data Explosion Protection
Wire connection CAGE CLAMP ® Electric circuit, safety-relevant data V 0 = 12 V ; I 0 = 16 mA; P 0 = 48 mW;
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14 Characteristic: Linear
Strip lengths 8 ... 9 mm / 0.33 in Reactances Ex ia IIC L 0 = 180 mH; C 0 = 1.4 μF
Width 12 mm Reactances Ex ia IIB L 0 = 560 mH; C 0 = 9 μF
Weight 44.1 g Reactance Ex ia IIA L 0 = 900 mH; C 0 = 36 μF
EMC immunity of interference acc. to EN 61000-6-2, marine applications Reactances Ex ia I L 0 = 1 H; C 0 = 38 μF
EMC emission of interference acc. to EN 61000-6-3, marine applications Reactances (The above-listed ratings do not account for
the coincidental occurrence of
capacitances and inductances. For ratings
taking the coincidental occurrence of
capacitances and inductances into
account, see manual)

Standards, Guidelines and Approvals
Conformity marking 1
ATEX Guideline 94 / 9 / EC EN 60079-0, EN 60079-11,
EN 60079-15, EN 60079-26,
EN 60079-31
EC EMC guideline 2004/108/EC
Korea Certification
Marine applications ABS, BV, DNV, GL, KR, LR, NKK, PRS, RINA
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 12 ATEX 106032 X I M2 (M1) Ex d [ia Ma] I Mb,
II 3 (1) G Ex nA [ia Ga] IIC T4 Gc,
II 3 (1) D Ex tc [ia Da] IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 12.0039 X Ex d [ia Ma] I Mb,
Ex nA [ia Ga] IIC T4 Gc,
Ex tc [ia Da] IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
