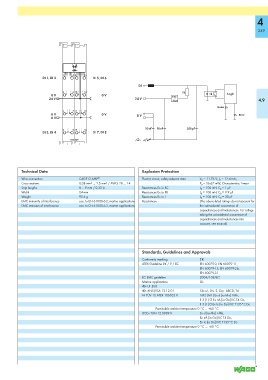

750-439

Technical Data Explosion Protection
Wire connection CAGE CLAMP ® Electric circuit, safety-relevant data V 0 = 11.76 V; I 0 = 12.4 mA;
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14 P 0 = 36.67 mW; Characteristic: Linear
Strip lengths 8 ... 9 mm / 0.33 in Reactances Ex ia IIC L 0 = 100 mH; C 0 = 1 μF
Width 24 mm Reactances Ex ia IIB L 0 = 100 mH; C 0 = 9.9 μF
Weight 95.6 g Reactances Ex ia I L 0 = 100 mH; C 0 = 30 μF
EMC immunity of interference acc. to EN 61000-6-2, marine applications Reactances (The above-listed ratings do not account for
EMC emission of interference acc. to EN 61000-6-3, marine applications the coincidental occurrence of
capacitances and inductances. For ratings
taking the coincidental occurrence of
capacitances and inductances into
account, see manual)

Standards, Guidelines and Approvals

Conformity marking 1
ATEX Guideline 94 / 9 / EC EN 60079-0, EN 60079-11,
EN 60079-15, EN 60079-26,
EN 60079-31
EC EMC guideline 2004/108/EC
Marine applications GL
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 12 ATEX 106032 X I M2 (M1) Ex d [ia Ma] I Mb,
II 3 (1) G Ex nA [ia Ga] IIC T4 Gc,
II 3 (1) D Ex tc [ia Da] IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 12.0039 X Ex d [ia Ma] I Mb,
Ex nA [ia Ga] IIC T4 Gc,
Ex tc [ia Da] IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
