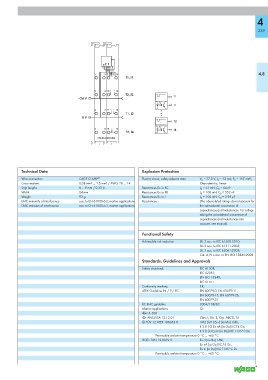

4

339

4.8
9 13
T1, I1

10 14
T2, I2 T1
+24 V
I1
11 15
T1, I3
0 V
T2
12 16 I4
T2, I4
750-663/000-003

Technical Data Explosion Protection
Wire connection CAGE CLAMP ® Electric circuit, safety-relevant data V 0 = 27.3 V; I 0 = 23 mA; P 0 = 157 mW;
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14 Characteristic: Linear
Strip lengths 8 ... 9 mm / 0.33 in Reactances Ex ia IIC L 0 = 61 mH; C 0 = 64 nF
Width 24 mm Reactances Ex ia IIB L 0 = 100 mH; C 0 = 552 nF
Weight 92 g Reactances Ex ia I L 0 = 100 mH; C 0 = 2.95 μF
EMC immunity of interference acc. to EN 61000-6-2, marine applications Reactances (The above-listed ratings do not account for
EMC emission of interference acc. to EN 61000-6-3, marine applications the coincidental occurrence of
capacitances and inductances. For ratings
taking the coincidental occurrence of
capacitances and inductances into
account, see manual)
Functional Safety
Achievable risk reduction SIL 3 acc. to IEC 61508:2010;
SIL 3 acc. to IEC 61511:2005;
SIL 3 acc. to IEC 62061:2005;
Cat. 4, PL e acc. to EN ISO 13849:2008
Standards, Guidelines and Approvals
Safety standards IEC 61508;
IEC 62061;
EN ISO 13849;
IEC 61511
Conformity marking 1
ATEX Guideline 94 / 9 / EC EN 60079-0, EN 60079-11,
EN 60079-15, EN 60079-26,
EN 60079-31
EC EMC guideline 2004/108/EC
Marine applications GL
r UL 508
r ANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
4 TÜV 12 ATEX 106032 X I M2 (M1) Ex d [ia Ma] I Mb,
II 3 (1) G Ex nA [ia Ga] IIC T4 Gc,
II 3 (1) D Ex tc [ia Da] IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
IECEx TUN 12.0039 X Ex d [ia Ma] I Mb,
Ex nA [ia Ga] IIC T4 Gc,
Ex tc [ia Da] IIIC T135°C Dc
Permissible ambient temperature 0 °C ... +60 °C
