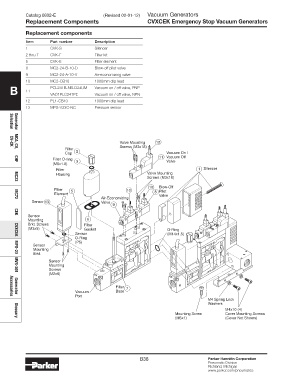

Page 108 - Parker - Vacuum products

Catalog 0802-E (Revised 02-01-12) Vacuum Generators
Replacement Components CVXCEK Emergency Stop Vacuum Generators

Replacement components
Item Part number Description
1 CVK-S Silencer
2 thru 7 CVK-F Filter kit
5 CVK-E Filter element
8 MC2-24-B-10-D Blow-off pilot valve
9 MC2-24-A-10-V Air-economizing valve
10 MC2-CB10 1000mm clip lead
B 11 PCL241B-NB-D24UM Vacuum on / off valve, PNP
VAO1PLC241PE
Vacuum on / off valve, NPN
12 PL1-CB10 1000mm clip lead
13 MPS-V23C-NC Pressure sensor

Selection
Generator
Valve Mounting 12
Screws (M3x18)
CV-CK
Filter
MCA, CV,
Cap 2 Vacuum On /
11 Vacuum Off
Filter O-ring 3 Valve
(M8x1.0)
CHF
Filter 1 Silencer
Housing Valve Mounting
Screws (M3x18)
MC22
10 Blow-Off
Filter 5 10 Pilot
Element 8 Valve
Air-Economizing
MC72
Sensor 13 Valve
9
Sensor
CEK
Mounting 6
Brkt. Screws Filter
(M3x5) Gasket O-Ring
Sensor (M14x1.5)
O-Ring
CVXCEK
(P5)
Sensor
Mounting
Brkt.
MPS-23
Sensor
Mounting
Screws
(M2x6)
MVS-201
Filter 7
Vacuum Base
Port
Generator
Accessories
M4 Spring Lock
Washers
M4x10 (4)
Mounting Screw Cover Mounting Screws
(M5x1) (Cover Not Shown)
