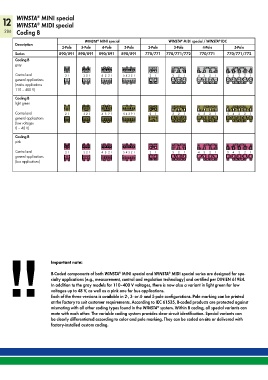

Page 288 - Wago_ThePluggableConnectionSystem_Volume5_2015_US.pdf

®
12 WINSTA MINI special
WINSTA MIDI special
®
286 Coding B

WINSTA MINI special WINSTA MIDI special / WINSTA IDC
®
®
®
Description
2-Pole 3-Pole 4-Pole 5-Pole 2-Pole 3-Pole 4-Pole 5-Pole
Series 890/891 890/891 890/891 890/891 770/771 770/771/772 770/771 770/771/772
Coding B
gray
Control and 2 1 3 2 1 4 3 2 1 5 4 3 2 1 2 1 3 2 1 4 3 2 1 5 4 3 2 1
general applications
(mains applications
110 – 400 V)
Coding B
light green
Control and 2 1 3 2 1 4 3 2 1 5 4 3 2 1 2 1 3 2 1 4 3 2 1 5 4 3 2 1
general applications
(low voltages
0 – 48 V)
Coding B
pink

Control and 2 1 3 2 1 4 3 2 1 5 4 3 2 1 2 1 3 2 1 4 3 2 1 5 4 3 2 1
general applications
(bus applications)

‼ Important note: ® ®

B-Coded components of both WINSTA MINI special and WINSTA MIDI special series are designed for spe-
cialty applications (e.g., measurement, control and regulation technology) and certified per DIN EN 61984.
In addition to the gray models for 110–400 V voltages, there is now also a variant in light green for low
voltages up to 48 V, as well as a pink one for bus applications.
Each of the three versions is available in 2-, 3- or 4- and 5-pole configurations. Pole marking can be printed
at the factory to suit customer requirements. According to IEC 61535, B-coded products are protected against
mismating with all other coding types found in the WINSTA system. Within B coding, all special variants can
®
mate with each other. The variable coding system provides clear circuit identification. Special variants can
be clearly differentiated according to color and pole marking. They can be coded on-site or delivered with
factory-installed custom coding.
