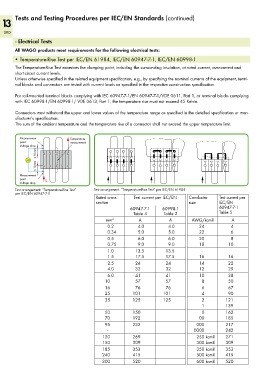

13 Tests and Testing Procedures per IEC/EN Standards (continued)

590
- Electrical Tests

All WAGO products meet requirements for the following electrical tests:
• Temperature-Rise Test per IEC/EN 61984, IEC/EN 60947-7-1, IEC/EN 60998-1

The Temperature-Rise Test examines the clamping point, including the surrounding insulation, at rated current, over-current and
short-circuit current levels.
Unless otherwise specified in the related equipment specification, e.g., by specifying the nominal currents of the equipment, termi-
nal blocks and connectors are tested with current loads as specified in the respective construction specification.

For rail-mounted terminal blocks complying with IEC 60947-7-1/EN 60947-7-1/VDE 0611, Part 1, or terminal blocks complying
with IEC 60998-1/EN 60998-1/ VDE 0613, Part 1, the temperature rise must not exceed 45 Kelvin.

Connectors must withstand the upper and lower values of the temperature range as specified in the detailed specification or man-
ufacturer‘s specification.
The sum of the ambient temperature and the temperature rise of a connector shall not exceed the upper temperature limit.

Measurement Temperature
point measurement
Voltage drop
≤ 10 mm

≤ 10 mm

Measurement
point I t
Voltage drop
Test arrangement: “Temperature-Rise Test” Test arrangement: “Temperature-Rise Test” per IEC/EN 61984
per IEC/EN 60947-7-1
Rated cross Test current per IEC/EN Conductor Test current per
section size IEC/EN
60947-7-1 60998-1 60947-7-1
Table 4 Table 2 Table 5
mm 2 A A AWG/kcmil A
0.2 4.0 4.0 24 4
0.34 5.0 5.0 22 6
0.5 6.0 6.0 20 8
0.75 9.0 9.0 18 10
1.0 13.5 13.5 -
1.5 17.5 17.5 16 16
2.5 24 24 14 22
4.0 32 32 12 29
6.0 41 41 10 38
10 57 57 8 50
16 76 76 6 67
25 101 101 4 90
35 125 125 2 121
- 1 139
50 150 0 162
70 192 00 185
95 232 000 217
- 0000 242
120 269 250 kcmil 271
150 309 300 kcmil 309
185 353 350 kcmil 353
240 415 500 kcmil 415
300 520 600 kcmil 520
