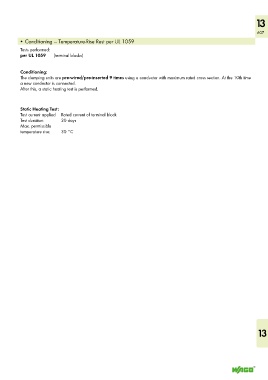

• Conditioning — Temperature-Rise Rest per UL 1059

Tests performed:
per UL 1059 (terminal blocks)

Conditioning:
The clamping units are pre-wired/pre-inserted 9 times using a conductor with maximum rated cross section. At the 10th time
a new conductor is connected.
After this, a static heating test is performed.

Static Heating Test:
Test current applied Rated current of terminal block
Test duration: 30 days
Max. permissible
temperature rise: 30 °C
