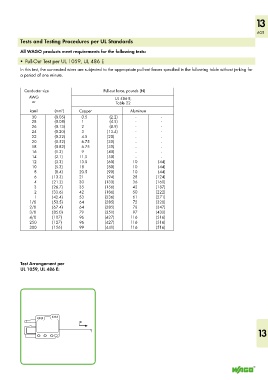

Tests and Testing Procedures per UL Standards

All WAGO products meet requirements for the following tests:

• Pull-Out Test per UL 1059, UL 486 E
In this test, the connected wires are subjected to the appropriate pull-out forces specified in the following table without jerking for
a period of one minute.

Conductor size Pull-out force, pounds (N)
AWG UL 486 E,
or Table 22

kcmil (mm ) Copper Aluminum
2
30 (0.05) 0.5 (2.2) - -
28 (0.08) 1 (4.5) - -
26 (0.13) 2 (8.9) - -
24 (0.20) 3 (13.4) - -
22 (0.32) 4.5 (20) - -
20 (0.52) 6.75 (30) - -
18 (0.82) 6.75 (30) - -
16 (1.3) 9 (40) - -
14 (2.1) 11.5 (50) - -
12 (3.3) 13.5 (60) 10 (44)
10 (5.3) 18 (80) 10 (44)
8 (8.4) 20.5 (90) 10 (44)
6 (13.3) 21 (94) 28 (124)
4 (21.2) 30 (133) 36 (160)
3 (26.7) 35 (156) 42 (187)
2 (33.6) 42 (186) 50 (222)
1 (42.4) 53 (236) 61 (271)
1/0 (53.5) 64 (285) 72 (320)
2/0 (67.4) 64 (285) 78 (347)
3/0 (85.0) 79 (351) 97 (432)
4/0 (107) 96 (427) 116 (516)
250 (127) 96 (427) 116 (516)
300 (156) 99 (441) 116 (516)

Test Arrangement per
UL 1059, UL 486 E:
