76 Inverter System & Power Supply Unit

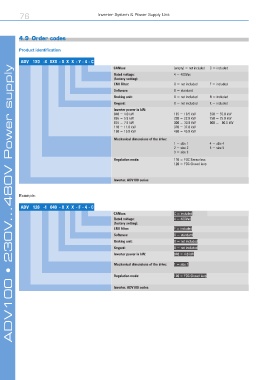

4.9 Order codes

Product identification

ADV 1X0 -X XXX - X X X - Y - 4 - C
ADV200 - 4 • Basic
...480V Power supply
CANbus: [empty] = not included C = included
Rated voltage: 4 = 400Vac
(factory setting):
EMI Filter: X = not included F = included
Software: X = standard
Braking unit: X = not included B = included
Keypad: X = not included K = included
Inverter power in kW:
040 = 4.0 kW 185 = 18.5 kW 550 = 55.0 kW
055 = 5.5 kW 220 = 22.0 kW 750 = 75.0 kW
075 = 7.5 kW 300 = 30.0 kW 900 = 90.0 kW
110 = 11.0 kW 370 = 37.0 kW
150 = 15.0 kW 450 = 45.0 kW
Mechanical dimensions of the drive:
1 = size 1 4 = size 4
2 = size 2 5 = size 5
3 = size 3
Regulation mode: 110 = FOC Sensorless
120 = FOC Closed loop

Inverter, ADV100 series

Example:

ADV 120 -1 040 - X X X - F - 4 - C
CANbus: C = included
Rated voltage: 4 = 400Vac
ADV100 • 230V
(factory setting):
EMI Filter: F = included
Software: X = standard
Braking unit: X = not included
Keypad: X = not included
Inverter power in kW: 040 = 4.0 kW

Mechanical dimensions of the drive: 1 = size 1

Regulation mode: 120 = FOC Closed loop

Inverter, ADV100 series
