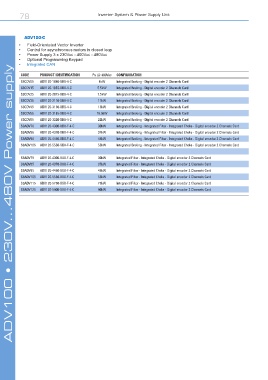

78 Inverter System & Power Supply Unit

ADV120-C
• Field-Orientated Vector Inverter
• Control for asynchronous motors in closed loop
• Power Supply 3 x 230Vac - 400Vac - 480Vac
• Optional Programming Keypad
• Integrated CAN
...480V Power supply
ADV200 - 4 • Basic
CODE PRODUCT IDENTIFICATION Pn @ 400Vac CONFIGURATION
S9CDV05 ADV120-1040-XBX-4-C 4kW Integrated Braking - Digital encoder 2 Channels Card
S9CDV15 ADV120-1055-XBX-4-C 5.5kW Integrated Braking - Digital encoder 2 Channels Card
S9CDV25 ADV120-2075-XBX-4-C 7.5kW Integrated Braking - Digital encoder 2 Channels Card
S9CDV35 ADV120-2110-XBX-4-C 11kW Integrated Braking - Digital encoder 2 Channels Card
S9CDV45 ADV120-3150-XBX-4-C 15kW Integrated Braking - Digital encoder 2 Channels Card
S9CDV55 ADV120-3185-XBX-4-C 18.5kW Integrated Braking - Digital encoder 2 Channels Card
S9CDV65 ADV120-3220-XBX-4-C 22kW Integrated Braking - Digital encoder 2 Channels Card
S9ADV76 ADV120-4300-XBX-F-4-C 30kW Integrated Braking - Integrated Filter - Integrated Choke - Digital encoder 2 Channels Card
S9ADV86 ADV120-4370-XBX-F-4-C 37kW Integrated Braking - Integrated Filter - Integrated Choke - Digital encoder 2 Channels Card
S9ADV96 ADV120-4450-XBX-F-4-C 45kW Integrated Braking - Integrated Filter - Integrated Choke - Digital encoder 2 Channels Card
S9ADV106 ADV120-5550-XBX-F-4-C 55kW Integrated Braking - Integrated Filter - Integrated Choke - Digital encoder 2 Channels Card

S9ADV75 ADV120-4300-XXX-F-4-C 30kW Integrated Filter - Integrated Choke - Digital encoder 2 Channels Card
S9ADV85 ADV120-4370-XXX-F-4-C 37kW Integrated Filter - Integrated Choke - Digital encoder 2 Channels Card
S9ADV95 ADV120-4450-XXX-F-4-C 45kW Integrated Filter - Integrated Choke - Digital encoder 2 Channels Card
S9ADV105 ADV120-5550-XXX-F-4-C 55kW Integrated Filter - Integrated Choke - Digital encoder 2 Channels Card
S9ADV115 ADV120-5750-XXX-F-4-C 75kW Integrated Filter - Integrated Choke - Digital encoder 2 Channels Card
S9ADV125 ADV120-5900-XXX-F-4-C 90kW Integrated Filter - Integrated Choke - Digital encoder 2 Channels Card

ADV100 • 230V
