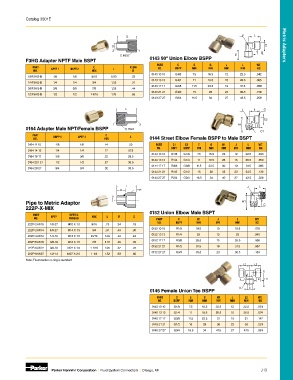

Page 299 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

L

D Metric Adapters
2 1
C HEX 0143 90º Union Elbow BSPP
F3HG Adapter NPTF Male BSPT
PART C E G J L WT.
PART C FLOW NO. BSPP MM MM MM MM KG
NO. NPTF 1 BSPT 2 HEX L D
0143 10 10 G1/8 7.5 16.5 12 22.5 .042
1/8F3HG-B 1/8 1/8 9/16 0.93 .22
0143 13 13 G1/4 11 18.5 15 26.5 .055
1/4F3HG-B 1/4 1/4 3/4 1.35 .31
0143 17 17 G3/8 11.5 23.5 19 31.5 .098
3/8F3HG-B 3/8 3/8 7/8 1.35 .44
0143 21 21 G1/2 15 28 23 35.5 .158
1/2F3HG-B 1/2 1/2 1-1/16 1.76 .56
0143 27 27 G3/4 16.5 34 27 43.5 .256

0164 Adapter Male NPT/Female BSPP
PART C
NO. BSPP 1 NPTF 2 HEX L 0144 Street Elbow Female BSPP to Male BSPT
0164 11 10 1/8 1/8 14 20 PART C1 C2 E G H1 J L WT.
NO. BSPT BSPP MM MM MM MM MM KG
0164 14 13 1/4 1/4 17 27.5
0144 10 10 R1/8 G1/8 7.5 16.5 23 12 22.5 .033
0164 18 17 3/8 3/8 22 28.5
0144 13 13 R1/4 G1/4 11 18.5 26 15 26.5 .050
0164 221 21 1/2 1/2 27 36.5
0144 17 17 R3/8 G3/8 11.5 23.5 30 19 31.5 .085
0164 28 27 3/4 3/4 32 38.5
0144 21 21 R1/2 G1/2 15 28 35 23 34.5 .138
0144 27 27 R3/4 G3/4 16.5 34 40 27 43.5 .229
L
M HEX
D
Pipe to Metric Adaptor
222P-X-MIX

PART METRIC 0152 Union Elbow Male BSPT
NO. NPTF THREAD HEX L M D PART C H1 J L WT.
NO. BSPT MM MM MM KG
222P-2-MI10 1/8-27 M10 X 1.0 9/16 .75 .34 .18
0152 10 10 R1/8 19.5 10 19.5 .018
222P-2-MI14 1/8-27 M14 X 1.5 3/4 .91 .43 .30
0152 13 13 R1/4 25 15 25 .045
222P-4-MI12 1/4-18 M12 X 1.5 11/16 1.09 .43 .24
0152 17 17 R3/8 26.5 15 26.5 .056
222P-6-MI16 3/8-18 M16 X 1.5 7/8 1.10 .45 .35
0152 21 21 R1/2 31.5 19 31.5 .087
222P-6-MI22 3/8-18 M22 X 1.5 1 1/16 1.05 .37 .47
222P-8-MI27 1/2-14 M27 X 2.0 1 1/4 1.32 .63 .60 0152 27 27 R3/4 35.5 23 35.5 .153
Note: Fluorocarbon o-ring is standard

0145 Female Union Tee BSPP
PART C E G H1 J L2 WT.
NO. BSPP MM MM MM MM MM KG
0145 10 10 G1/8 7.5 16.5 22.5 12 22.5 .051
0145 13 13 G1/4 11 18.5 26.5 15 26.5 .074
0145 17 17 G3/8 11.5 23.5 31 19 31 .147
0145 21 21 G1/2 15 28 38 23 38 .231
0145 27 27 G3/4 16.5 34 47.5 27 47.5 .381

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI J13
