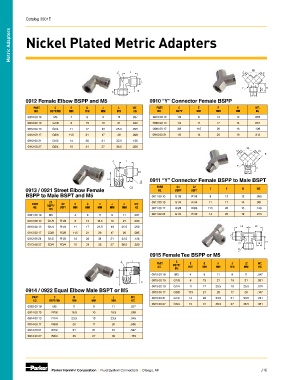

Page 302 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Metric Adapters Nickel Plated Metric Adapters

0912 Female Elbow BSPP and M5 0910 “Y” Connector Female BSPP
PART C E G J L WT. PART C E F H WT.
NO. BSPP/M5 MM MM MM MM KG NO. BSPP MM MM MM KG
0912 00 19 M5 4 8 9 11 .037 0910 00 10 1/8 8 13 12 .055
0912 00 10 G1/8 8 13 10 21 .042 0910 00 13 1/4 11 17 14 .081
0912 00 13 G1/4 11 17 13 25.5 .055 0910 00 17 3/8 11.5 20 16 .128
0912 00 17 G3/8 11.5 21 17 28 .098 0910 00 21 1/2 14 25 19 .213
0912 00 21 G1/2 14 26 21 33.5 .158
0912 00 27 G3/4 15 31 27 36.5 .256

0911 “Y” Connector Female BSPP to Male BSPT
PART C1 C2
0913 / 0921 Street Elbow Female NO. BSPP BSPT E F H WT.
BSPP to Male BSPT and M5 0911 00 10 G1/8 R1/8 8 13 12 .055

PART C1 C2 E G H J L WT. 0911 00 13 G1/4 R1/4 11 17 14 .081
NO. BSPP/ BSPT MM MM MM MM MM KG 0911 00 17 G3/8 R3/8 11.5 20 16 .128
M5
0921 00 19 M5 4 8 11 9 11 .037 0911 00 21 G1/2 R1/2 14 25 19 .213
0913 00 10 G1/8 R1/8 8 13 18.5 10 21 .033
0913 00 13 G1/4 R1/4 11 17 23.5 13 25.5 .050
0913 00 17 G3/8 R3/8 11.5 21 26 17 28 .085
0913 00 21 G1/2 R1/2 14 26 31 21 33.5 .138
0913 00 27 G3/4 R3/4 15 31 35 27 36.5 .229

0915 Female Tee BSPP or M5
PART C E G H J L2 WT.
NO. BSPP/ MM MM MM MM MM KG
M5
0915 00 19 M5 4 8 11 9 11 .047
0915 00 10 G1/8 8 13 21 10 21 .051
0915 00 13 G1/4 11 17 25.5 13 25.5 .074
0914 / 0922 Equal Elbow Male BSPT or M5 0915 00 17 G3/8 11.5 21 28 17 28 .147
PART C H J L WT. 0915 00 21 G1/2 14 26 33.5 21 33.5 .231
NO. BSPT/M5 MM MM MM KG
0915 00 27 G3/4 15 31 36.5 27 36.5 .381
0922 00 19 M5 11 9 11 .037
0914 00 10 R1/8 18.5 10 18.5 .018
0914 00 13 R1/4 23.5 13 23.5 .045
0914 00 17 R3/8 26 17 26 .056
0914 00 21 R1/2 31 21 31 .087
0914 00 27 R3/4 35 27 35 .153

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI J16
