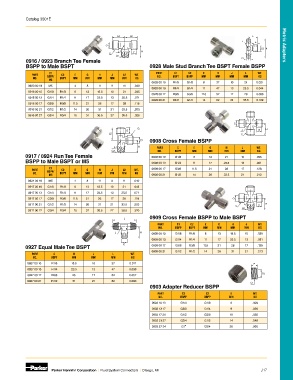

Page 303 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

0916 / 0923 Branch Tee Female Metric Adapters
BSPP to Male BSPT 0928 Male Stud Branch Tee BSPT Female BSPP
H
C1
E
C2
J
L
PART C1 C2 E G H J L2 WT. PART BSPT BSPP MM MM MM MM WT.
NO.
KG
NO. BSPP/ BSPT MM MM MM MM MM KG
M5
0928 00 10 R1/8 G1/8 8 37 10 21 0.021
0923 00 19 M5 4 8 11 9 11 .040
0928 00 13 R1/4 G1/4 11 47 13 25.5 0.044
0916 00 10 G1/8 R1/8 8 13 18.5 10 21 .045
0928 00 17 R3/8 G3/8 11.5 52 17 28 0.066
0916 00 13 G1/4 R1/4 11 17 23.5 13 25.5 .071
0928 00 21 R1/2 G1/2 14 62 21 33.5 0.109
0916 00 17 G3/8 R3/8 11.5 21 26 17 28 .118
0916 00 21 G1/2 R1/2 14 26 31 21 33.5 .203
0916 00 27 G3/4 R3/4 15 31 36.5 27 36.5 .320
0908 Cross Female BSPP
PART C E G H J WT.
NO. BSPP MM MM MM MM KG
0917 / 0924 Run Tee Female 0908 00 10 G1/8 8 13 21 10 .055
BSPP to Male BSPT or M5 0908 00 13 G1/4 11 17 25.5 13 .081
PART C1 C2 E G H J L2 WT. 0908 00 17 G3/8 11.5 21 28 17 .128
NO. BSPP/ BSPT MM MM MM MM MM KG
M5 0908 00 21 G1/2 14 26 33.5 21 .213
0924 00 19 M5 4 8 11 9 11 .040
0917 00 10 G1/8 R1/8 8 13 18.5 10 21 .045
0917 00 13 G1/4 R1/4 11 17 23.5 13 25.5 .071
0917 00 17 G3/8 R3/8 11.5 21 26 17 28 .118
0917 00 21 G1/2 R1/2 14 26 31 21 33.5 .203
0917 00 27 G3/4 R3/4 15 31 36.5 27 36.5 .320
0909 Cross Female BSPP to Male BSPT
PART C1 C2 E G H J WT.
NO. BSPP BSPT MM MM MM MM KG
0909 00 10 G1/8 R1/8 8 13 18.5 10 .055
0909 00 13 G1/4 R1/4 11 17 23.5 13 .081
0927 Equal Male Tee BSPT 0909 00 17 G3/8 R3/8 11.5 21 26 17 .128
0909 00 21 G1/2 R1/2 14 26 31 21 .213
PART C H J L WT.
NO. BSPT MM MM MM KG
0927 00 10 R1/8 18.5 10 37 0.017
0927 00 13 R1/4 23.5 13 47 0.038
0927 00 17 R3/8 26 17 52 0.057
0927 00 21 R1/2 31 21 62 0.093
0903 Adapter Reducer BSPP
PART C1 C2 E WT.
NO. BSPP BSPP MM KG
0903 10 13 G1/4 G1/8 8 .009
0903 13 17 G3/8 G1/4 9 .020
0903 17 21 G1/2 G3/8 10 .025
0903 21 27 G3/4 G1/2 14 .048
0903 27 34 G1” G3/4 20 .060

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI J17
