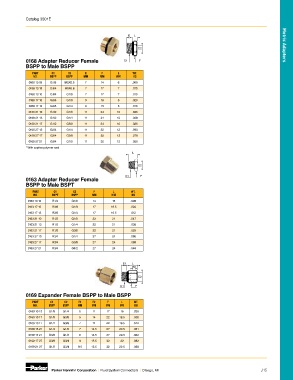

Page 301 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

0168 Adapter Reducer Female Metric Adapters
BSPP to Male BSPP

PART C1 C2 E F L WT.
NO. BSPP BSPP MM MM MM KG
0168 10 19 G1/8 M5X0.8 7 14 6 .008
0168 13 19 G1/4 M5X0.8 7 17 7 .010
0168 13 10 G1/4 G1/8 7 17 7 .010
0168 17 10 G3/8 G1/8 9 19 6 .020
0168 17 13 G3/8 G1/4 9 19 6 .013
0168 21 10 G1/2 G1/8 11 24 10 .046
0168 21 13 G1/2 G1/4 11 24 10 .038
0168 21 17 G1/2 G3/8 11 24 10 .026
0168 27 13 G3/4 G1/4 11 32 12 .090
0168 27 17 G3/4 G3/8 11 32 12 .078
0168 27 21 G3/4 G1/2 11 32 12 .058
* With captive polymer seal

0163 Adapter Reducer Female
BSPP to Male BSPT
PART C1 C2 F L WT.
NO. BSPT BSPP MM MM KG
0163 13 10 R1/4 G1/8 14 16 .009
0163 17 10 R3/8 G1/8 17 16.5 .020
0163 17 13 R3/8 G1/4 17 16.5 .012
0163 21 10 R1/2 G1/8 22 21 .047
0163 21 13 R1/2 G1/4 22 21 .038
0163 21 17 R1/2 G3/8 22 21 .025
0163 27 13 R3/4 G1/4 27 24 .086
0163 27 17 R3/4 G3/8 27 24 .069
0163 27 21 R3/4 G1/2 27 24 .048

0169 Expander Female BSPP to Male BSPP
PART C1 C2 E1 E2 F L WT.
NO. BSPP BSPP MM MM MM MM KG
0169 10 13 G1/8 G1/4 5 11 17 16 .020
0169 10 17 G1/8 G3/8 5 14 22 19.5 .038
0169 13 17 G1/4 G3/8 7 14 22 19.5 .042
0169 13 21 G1/4 G1/2 7 14.5 27 20.5 .061
0169 17 21 G3/8 G1/2 8 14.5 27 20.5 .062
0169 17 27 G3/8 G3/4 8 15.5 32 22 .082
0169 21 27 G1/2 G3/4 9.5 15.5 32 22.5 .088

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI J15
