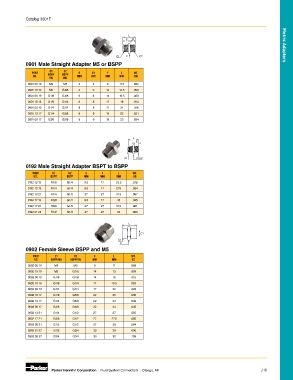

Page 305 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

0901 Male Straight Adapter M5 or BSPP Metric Adapters
C1 C2
PART BSPP BSPP E E1 F L WT.
NO. MM MM MM MM KG
M5 M5
0901 00 19 M5 M5 4 4 8 11.5 .002
0901 19 10 M5 G1/8 4 6 14 14.5 .008
0901 00 10 G1/8 G1/8 6 6 14 16.5 .008
0901 10 13 G1/8 G1/4 6 8 17 19 .014
0901 00 13 G1/4 G1/4 8 8 17 21 .016
0901 13 17 G1/4 G3/8 8 9 19 22 .021
0901 00 17 G3/8 G3/8 9 9 19 23 .024

0192 Male Straight Adapter BSPT to BSPP

PART C1 C2 E F L WT.
NO. BSPT BSPP MM MM MM KG
0192 10 13 R1/8 G1/4 9.5 17 23.5 .019
0192 13 13 R1/4 G1/4 9.5 17 27.5 .024
0192 13 21 R1/4 G1/2 27 27 31.5 .067
0192 17 13 R3/8 G1/4 9.5 17 45 .025
0192 17 21 R3/8 G1/2 27 27 31.5 .061
0192 21 21 R1/2 G1/2 27 27 34 .060

0902 Female Sleeve BSPP and M5
PART C1 C2 F L WT.
NO. BSPP/M5 BSPP/M5 MM MM KG
0902 00 19 M5 M5 8 11 .009
0902 19 10 M5 G1/8 14 13 .009
0902 00 10 G1/8 G1/8 14 15 .015
0902 10 13 G1/8 G1/4 17 19.5 .020
0902 00 13 G1/4 G1/4 17 22 .025
0902 10 17 G1/8 G3/8 22 20 .030
0902 13 17 G1/4 G3/8 22 23 .040
0902 00 17 G3/8 G3/8 22 24 .045
0902 13 21 G1/4 G1/2 27 27 .050
0902 17 21 G3/8 G1/2 27 27.5 .060
0902 00 21 G1/2 G1/2 27 30 .084
0902 21 27 G1/2 G3/4 30 30 .090
0902 00 27 G3/4 G3/4 30 32 .109

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI J19
