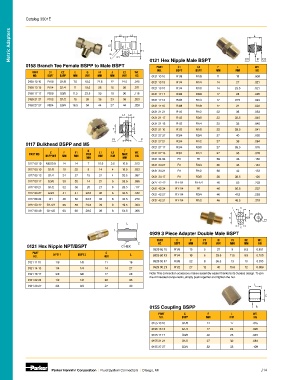

Page 300 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Metric Adapters

0158 Branch Tee Female BSPP to Male BSPT 0121 Hex Nipple Male BSPT F L WT.
PART
C1
C2
NO. BSPT BSPT MM MM KG
PART C1 C2 E G H1 J L2 WT.
NO. BSPT BSPP MM MM MM MM MM KG 0121 10 10 R1/8 R1/8 11 19 .009
0158 10 10 R1/8 G1/8 7.5 16.5 21.5 12 21.5 .045 0121 13 13 R1/4 R1/4 14 27 .021
0158 13 13 R1/4 G1/4 11 18.5 26 15 26 .071 0121 13 10 R1/4 R1/8 14 23.5 .021
0158 17 17 R3/8 G3/8 11.5 23.5 30 19 30 .118 0121 17 17 R3/8 R3/8 17 28 .025
0158 21 21 R1/2 G1/2 15 28 36 23 36 .203 0121 17 13 R3/8 R1/4 17 27.5 .024
0158 27 27 R3/4 G3/4 16.5 34 44 27 44 .320 0121 17 10 R3/8 R1/8 17 24 .022
0121 21 21 R1/2 R1/2 22 36 .053
0121 21 17 R1/2 R3/8 22 32.5 .045
0121 21 13 R1/2 R1/4 22 32 .045
0121 21 10 R1/2 R1/8 22 28.5 .041
0121 27 27 R3/4 R3/4 27 40 .092
0117 Bulkhead BSPP and M5 0121 27 21 R3/4 R1/2 27 39 .084
0121 27 17 R3/4 R3/8 27 35.5 .076
C F F1 K L1 L2 T WT. 0121 27 13 R3/4 R1/4 27 35 .079
PART NO. BSPP/M5 MM MM MAX MM MM MAX KG
MM MM 0121 34 34 R1 R1 36 46 .156
0117 00 19 M5X0.8 14 14 7 10.5 3.5 10.5 .013 0121 34 27 R1 R3/4 36 43 .143
0117 00 10 G1/8 19 22 9 14 4 16.5 .033
0121 34 21 R1 R1/2 36 42 .133
0117 00 13 G1/4 24 27 15 21 4 20.5 .057 0121 34 17 R1 R3/8 36 38.5 .126
0117 00 17 G3/8 30 32 14 21 5 26.5 .096 0121 42 42 R1-1/4 R1-1/4 46 53 .233
0117 00 21 G1/2 32 36 20 27 6 28.5 .117 0121 42 34 R1-1/4 R1 46 50.5 .237
0117 00 27 G3/4 41 41 22.5 30 6 34.5 .162
0121 42 27 R1-1/4 R3/4 46 47.5 .229
0117 00 34 G1 46 50 24.5 34 8 42.5 .270 0121 42 21 R1-1/4 R1/2 46 46.5 .219
0117 00 42 G1-1/4 55 55 29.5 39 8 49.5 .300
0117 00 49 G1-1/2 60 60 29.5 39 8 54.5 .306

0929 3 Piece Adapter Double Male BSPT
PART C F F1 H H1 H2 WT.
0121 Hex Nipple NPT/BSPT NO. BSPT MM MM MM MM MM KG
0929 00 10 R1/8 15 5 27 9 8.5 0.181
PART C
NO. NPTF 1 BSPT 2 HEX L 0929 00 13 R1/4 19 6 33.5 11.5 9.5 0.100
0121 11 10 1/8 1/8 11 19 0929 00 17 R3/8 22 8 36.5 13 10 0.010
0121 14 13 1/4 1/4 14 27 0929 00 21 R1/2 27 12 45 15.5 12 0.088
0121 18 17 3/8 3/8 17 28 Note: This connection accessory makes assembly easier thanks to its 3-piece design. To join
the 2 threaded components, simply push together and tighten the nut.
0121 22 21 1/2 1/2 22 36
0121 28 27 3/4 3/4 27 40

0155 Coupling BSPP
PART C F L WT.
NO. BSPP MM MM KG
0155 10 10 G1/8 14 17 .015
0155 13 13 G1/4 17 24 .025
0155 17 17 G3/8 22 25 .045
0155 21 21 G1/2 27 32 .084
0155 27 27 G3/4 32 35 .109

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI J14
