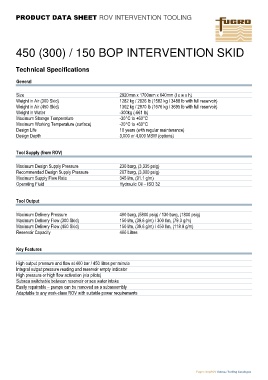

PRODUCT DATA SHEET ROV INTERVENTION TOOLING
450 (300) / 150 BOP INTERVENTION SKID
Technical Specifications
General
Size 2920mm x 1700mm x 640mm (l x w x h)
Weight in Air (300 Skid) 1282 kg / 2826 lb (1582 kg / 3488 lb with full reservoir)
Weight in Air (450 Skid) 1302 kg / 2870 lb (1676 kg / 3695 lb with full reservoir)
Weight in Water -300kg (-661 lb)
Maximum Storage Temperature -30°C to +60°C
Maximum Working Temperature (surface) -20°C to +60°C
Design Life 10 years (with regular maintenance)
Design Depth 3,000 or 4,000 MSW (options)
Tool Supply (from ROV)
Maximum Design Supply Pressure 230 barg, (3,335 psig)
Recommended Design Supply Pressure 207 barg, (3,000 psig)
Maximum Supply Flow Rate 345 l/m, (91.1 g/m)
Operating Fluid Hydraulic Oil – ISO 32
Tool Output
Maximum Delivery Pressure 400 barg, (5800 psig) / 130 barg, (1800 psig)
Maximum Delivery Flow (300 Skid) 150 l/m, (39.6 g/m) / 300 l/m, (79.3 g/m)
Maximum Delivery Flow (450 Skid) 150 l/m, (39.6 g/m) / 450 l/m, (118.9 g/m)
Reservoir Capacity 400 Litres
Key Features
High output pressure and flow at 400 bar / 450 litres per minute
Integral output pressure reading and reservoir empty indicator
High pressure or high flow activation (via pilots)
Subsea switchable between reservoir or sea water intake
Easily repairable – pumps can be removed as a subassembly
Adaptable to any work-class ROV with suitable power requirements
