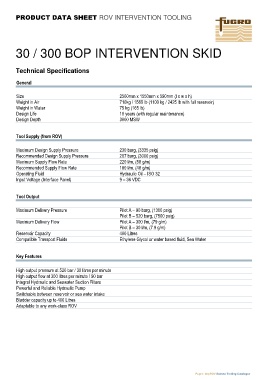

PRODUCT DATA SHEET ROV INTERVENTION TOOLING

30 / 300 BOP INTERVENTION SKID

Technical Specifications

General

Size 2500mm x 1550mm x 590mm (l x w x h)
Weight in Air 710kg / 1565 lb (1100 kg / 2425 lb with full reservoir)
Weight in Water 75 kg (165 lb)
Design Life 10 years (with regular maintenance)
Design Depth 3000 MSW

Tool Supply (from ROV)

Maximum Design Supply Pressure 230 barg, (3335 psig)
Recommended Design Supply Pressure 207 barg, (3000 psig)
Maximum Supply Flow Rate 220 l/m, (58 g/m)
Recommended Supply Flow Rate 180 l/m. (48 g/m)
Operating Fluid Hydraulic Oil – ISO 32
Input Voltage (Interface Panel) 9 – 36 VDC

Tool Output

Maximum Delivery Pressure Pilot A – 90 barg, (1300 psig)
Pilot B – 520 barg, (7500 psig)
Maximum Delivery Flow Pilot A – 300 l/m, (79 g/m)
Pilot B – 30 l/m, (7.9 g/m)
Reservoir Capacity 400 Litres
Compatible Transport Fluids Ethylene Glycol or water based fluid, Sea Water

Key Features

High output pressure at 520 bar / 30 litres per minute
High output flow at 300 litres per minute / 90 bar
Integral Hydraulic and Seawater Suction Filters
Powerful and Reliable Hydraulic Pump
Switchable between reservoir or sea water intake
Bladder capacity up to 400 Litres
Adaptable to any work-class ROV
