P. 133

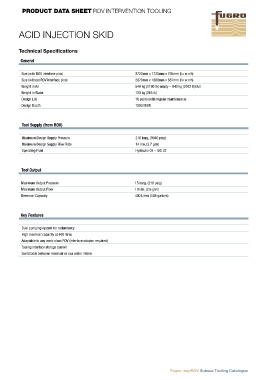

PRODUCT DATA SHEET ROV INTERVENTION TOOLING
ACID INJECTION SKID
Technical Specifications
General
Size (with ROV interface pins) 2720mm x 1730mm x 795mm (l x w x h)
Size (without ROV interface pins) 2870mm x 1800mm x 687mm (l x w x h)
Weight in Air 540 kg (1190 lb) empty – 940 kg (2072 lb) full
Weight in Water 120 kg (265 lb)
Design Life 10 years (with regular maintenance)
Design Depth 1500 MSW
Tool Supply (from ROV)
Maximum Design Supply Pressure 210 barg, (3046 psig)
Maximum Design Supply Flow Rate 14 l/m, (3.7 g/m)
Operating Fluid Hydraulic Oil – ISO 32
Tool Output
Maximum Output Pressure 15 barg, (218 psig)
Maximum Output Flow 10 l/m, (2.6 g/m)
Reservoir Capacity 400 Litres (106 gallons)
Key Features
Dual pumping system for redundancy
High reservoir capacity at 400 litres
Adaptable to any work-class ROV (interface adaptor required)
Tooling interface storage basket
Switchable between reservoir or sea water intake
Fugro-impROV Subsea Tooling Catalogue
