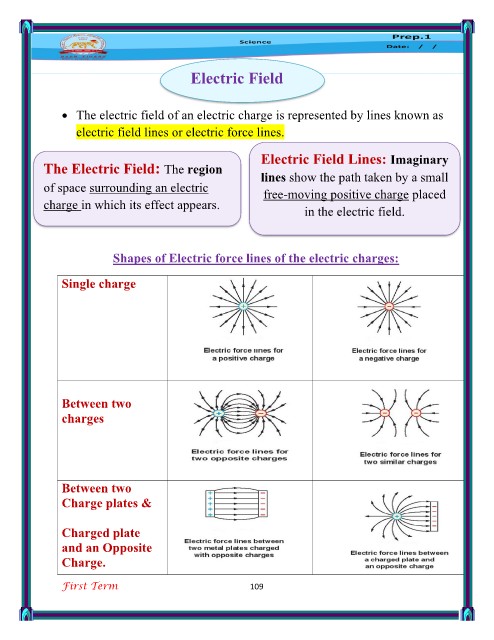

Electric Field
• The electric field of an electric charge is represented by lines known as
electric field lines or electric force lines.
The Electric Field: The region Electric Field Lines: Imaginary
of space surrounding an electric lines show the path taken by a small
charge in which its effect appears. free-moving positive charge placed
in the electric field.
Shapes of Electric force lines of the electric charges:
Single charge
Between two 109
charges
Between two
Charge plates &
Charged plate
and an Opposite
Charge.
