User Instructions

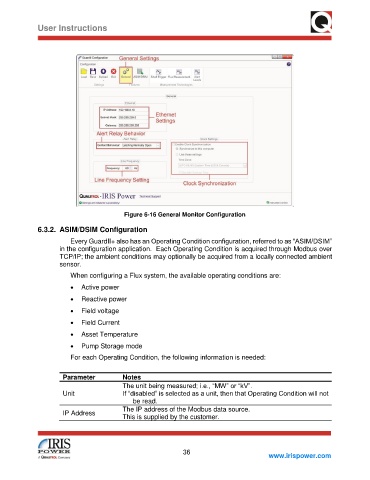

Figure 6-16 General Monitor Configuration
6.3.2. ASIM/DSIM Configuration
Every GuardII+ also has an Operating Condition configuration, referred to as “ASIM/DSIM”
in the configuration application. Each Operating Condition is acquired through Modbus over
TCP/IP; the ambient conditions may optionally be acquired from a locally connected ambient
sensor.
When configuring a Flux system, the available operating conditions are:
• Active power
• Reactive power
• Field voltage
• Field Current
• Asset Temperature
• Pump Storage mode
For each Operating Condition, the following information is needed:
Parameter Notes
The unit being measured; i.e., “MW” or “kV”.
Unit If “disabled” is selected as a unit, then that Operating Condition will not
be read.
The IP address of the Modbus data source.
IP Address
This is supplied by the customer.
