User Instructions

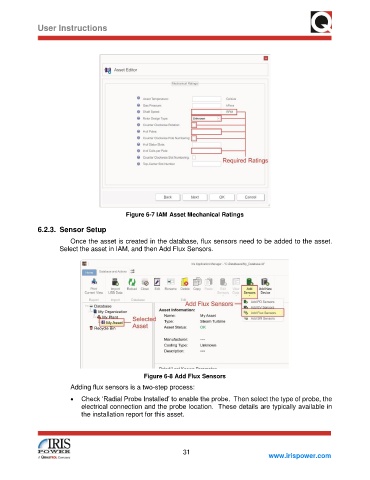

Figure 6-7 IAM Asset Mechanical Ratings
6.2.3. Sensor Setup
Once the asset is created in the database, flux sensors need to be added to the asset.
Select the asset in IAM, and then Add Flux Sensors.
Figure 6-8 Add Flux Sensors
Adding flux sensors is a two-step process:
• Check ‘Radial Probe Installed’ to enable the probe. Then select the type of probe, the
electrical connection and the probe location. These details are typically available in
the installation report for this asset.
