User Instructions

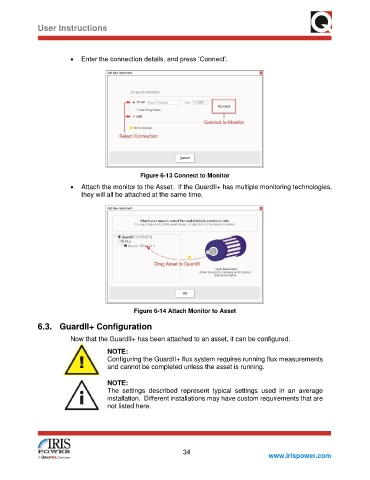

• Enter the connection details, and press ‘Connect’.

Figure 6-13 Connect to Monitor
• Attach the monitor to the Asset. If the GuardII+ has multiple monitoring technologies,
they will all be attached at the same time.

Figure 6-14 Attach Monitor to Asset

6.3. GuardII+ Configuration

Now that the GuardII+ has been attached to an asset, it can be configured.

NOTE:
Configuring the GuardII+ flux system requires running flux measurements
and cannot be completed unless the asset is running.

NOTE:
The settings described represent typical settings used in an average
installation. Different installations may have custom requirements that are

not listed here.
