Installation

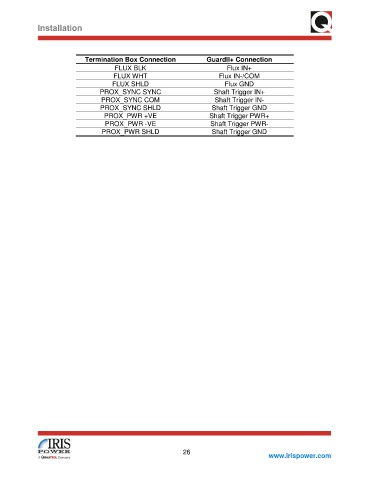

Termination Box Connection GuardII+ Connection
FLUX BLK Flux IN+
FLUX WHT Flux IN-/COM
FLUX SHLD Flux GND
PROX_SYNC SYNC Shaft Trigger IN+
PROX_SYNC COM Shaft Trigger IN-
PROX_SYNC SHLD Shaft Trigger GND
PROX_PWR +VE Shaft Trigger PWR+
PROX_PWR -VE Shaft Trigger PWR-
PROX_PWR SHLD Shaft Trigger GND
