Installation

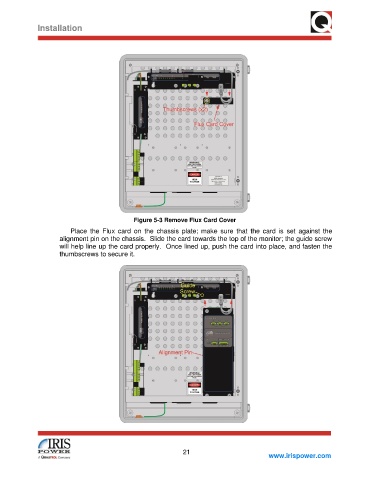

Figure 5-3 Remove Flux Card Cover
Place the Flux card on the chassis plate; make sure that the card is set against the
alignment pin on the chassis. Slide the card towards the top of the monitor; the guide screw
will help line up the card properly. Once lined up, push the card into place, and fasten the
thumbscrews to secure it.
