Installation

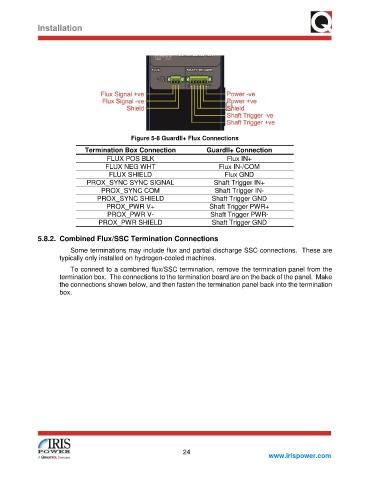

Figure 5-8 GuardII+ Flux Connections
Termination Box Connection GuardII+ Connection
FLUX POS BLK Flux IN+
FLUX NEG WHT Flux IN-/COM
FLUX SHIELD Flux GND
PROX_SYNC SYNC SIGNAL Shaft Trigger IN+
PROX_SYNC COM Shaft Trigger IN-
PROX_SYNC SHIELD Shaft Trigger GND
PROX_PWR V+ Shaft Trigger PWR+
PROX_PWR V- Shaft Trigger PWR-
PROX_PWR SHIELD Shaft Trigger GND

5.8.2. Combined Flux/SSC Termination Connections

Some terminations may include flux and partial discharge SSC connections. These are
typically only installed on hydrogen-cooled machines.

To connect to a combined flux/SSC termination, remove the termination panel from the
termination box. The connections to the termination board are on the back of the panel. Make
the connections shown below, and then fasten the termination panel back into the termination
box.
