Installation

Note:
To prevent signal distortion, excess flux probe cabling should be trimmed
to the minimum length and not coiled.

5.8.1. Flux-Only Termination Connections
Some flux termination boxes only have connections for flux sensors. These may be
installed on air-cooled or hydrogen-cooled machines, but the connections are the same.
To connect to a flux-only termination, remove the termination panel from the termination
box. The connections to the termination board are on the back of the panel. Make the
connections shown below, and then fasten the termination panel back into the termination
box.

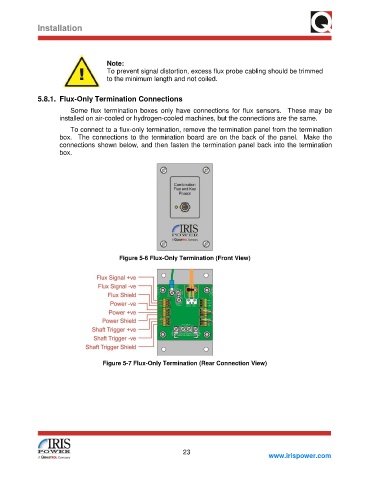

Figure 5-6 Flux-Only Termination (Front View)

Figure 5-7 Flux-Only Termination (Rear Connection View)
