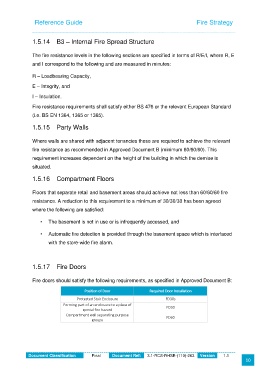

Reference Guide                                                         Fire Strategy



               1.5.14  B3 – Internal Fire Spread Structure


               The fire resistance levels in the following sections are specified in terms of R/E/I, where R, E

               and I correspond to the following and are measured in minutes:

               R – Loadbearing Capacity,

               E – Integrity, and

               I – Insulation.

               Fire resistance requirements shall satisfy either BS 476 or the relevant European Standard
               (i.e. BS EN 1364, 1365 or 1365).

               1.5.15  Party Walls


               Where walls are shared with adjacent tenancies these are required to achieve the relevant

               fire resistance as recommended in Approved Document B (minimum 60/60/60). This
               requirement increases dependent on the height of the building in which the demise is
               situated.

               1.5.16  Compartment Floors


               Floors that separate retail and basement areas should achieve not less than 60/60/60 fire

               resistance. A reduction to this requirement to a minimum of 30/30/30 has been agreed
               where the following are satisfied:


                   •   The basement is not in use or is infrequently accessed, and

                   •   Automatic fire detection is provided through the basement space which is interfaced
                       with the store-wide fire alarm.




               1.5.17  Fire Doors


               Fire doors should satisfy the following requirements, as specified in Approved Document B:

                                       Position of Door            Required Door Installation
                                   Protected Stair Enclosure               FD30s
                             Forming part of an enclosure to a place of
                                      special fire hazard                  FD30
                              Compartment wall separating purpose          FD60
                                          groups
