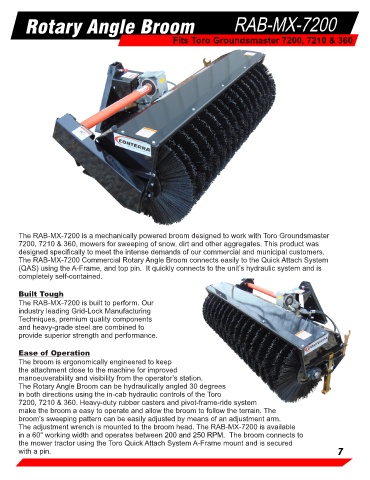

Rotary Angle Broom RAB-MX-7200

Fits Toro Groundsmaster 7200, 7210 & 360

The RAB-MX-7200 is a mechanically powered broom designed to work with Toro Groundsmaster
7200, 7210 & 360, mowers for sweeping of snow, dirt and other aggregates. This product was
designed specifically to meet the intense demands of our commercial and municipal customers.
The RAB-MX-7200 Commercial Rotary Angle Broom connects easily to the Quick Attach System
(QAS) using the A-Frame, and top pin. It quickly connects to the unit’s hydraulic system and is
completely self-contained.

Built Tough
The RAB-MX-7200 is built to perform. Our
industry leading Grid-Lock Manufacturing
Techniques, premium quality components
and heavy-grade steel are combined to
provide superior strength and performance.

Ease of Operation
The broom is ergonomically engineered to keep
the attachment close to the machine for improved
manoeuverability and visibility from the operator’s station.
The Rotary Angle Broom can be hydraulically angled 30 degrees
in both directions using the in-cab hydraulic controls of the Toro
7200, 7210 & 360. Heavy-duty rubber casters and pivot-frame-ride system
make the broom a easy to operate and allow the broom to follow the terrain. The
broom’s sweeping pattern can be easily adjusted by means of an adjustment arm.
The adjustment wrench is mounted to the broom head. The RAB-MX-7200 is available
in a 60" working width and operates between 200 and 250 RPM. T he broom connects to
the mower tractor using the Toro Quick Attach System A-Frame mount and is secured
with a pin. 7
