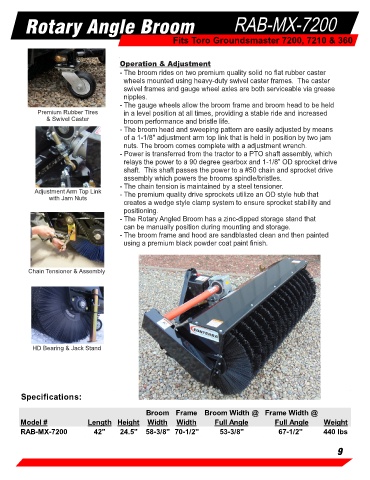

Rotary Angle Broom RAB-MX-7200

Fits Toro Groundsmaster 7200, 7210 & 360

Operation & Adjustment
- The broom rides on two premium quality solid no flat rubber caster
wheels mounted using heavy-duty swivel caster frames. The caster
swivel frames and gauge wheel axles are both serviceable via grease
nipples.
- The gauge wheels allow the broom frame and broom head to be held
Premium Rubber Tires in a level position at all times, providing a stable ride and increased
& Swivel Caster broom performance and bristle life.
- The broom head and sweeping pattern are easily adjusted by means
of a 1-1/8" adjustment arm top link that is held in position by two jam
nuts. The broom comes complete with a adjustment wrench.
- Power is transferred from the tractor to a PTO shaft assembly, which
relays the power to a 90 degree gearbox and 1-1/8” OD sprocket drive
shaft. This shaft passes the power to a #50 chain and sprocket drive
assembly which powers the brooms spindle/bristles.
- The chain tension is maintained by a steel tensioner.
Adjustment Arm Top Link - The premium quality drive sprockets utilize an OD style hub that
with Jam Nuts
creates a wedge style clamp system to ensure sprocket stability and
positioning.
- The Rotary Angled Broom has a zinc-dipped storage stand that
can be manually position during mounting and storage.
- The broom frame and hood are sandblasted clean and then painted
using a premium black powder coat paint finish.

Chain Tensioner & Assembly

HD Bearing & Jack Stand

Specifications:

Broom Frame Broom Width @ Frame Width @
Model # Length Height Width Width Full Angle Full Angle Weight
RAB-MX-7200 42" 24.5" 58-3/8" 70-1/2" 53-3/8" 67-1/2" 440 lbs
