Page 68 - Towards A Sustainable Future , Phase 3 2025, E-Book_Neat

For off-cuts from HPL sheets that are not used or if discarded (big or small pieces), the team propose to embrace the principles
of circular economy, that is to create or derive new products, ie. High Pressure Laminate (HPL) Boxes (3 categories - Large,
Medium and Small) from these off-cuts (See Table 5). (The team had also created a business plan and proposal to showcase the
viability and potential of these products-refer to Annexe A).

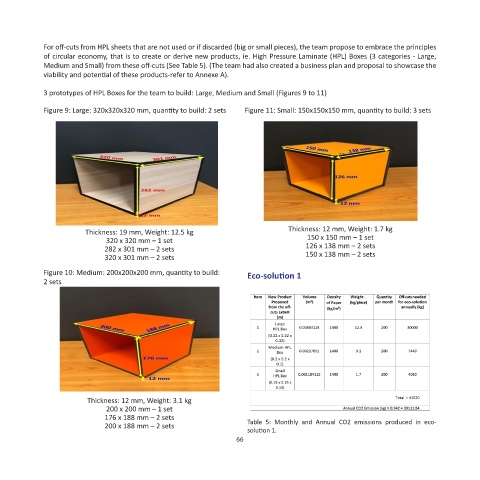

3 prototypes of HPL Boxes for the team to build: Large, Medium and Small (Figures 9 to 11)

Figure 9: Large: 320x320x320 mm, quantity to build: 2 sets Figure 11: Small: 150x150x150 mm, quantity to build: 3 sets

Thickness: 19 mm, Weight: 12.5 kg Thickness: 12 mm, Weight: 1.7 kg
320 x 320 mm – 1 set 150 x 150 mm – 1 set
282 x 301 mm – 2 sets 126 x 138 mm – 2 sets
320 x 301 mm – 2 sets 150 x 138 mm – 2 sets
Figure 10: Medium: 200x200x200 mm, quantity to build: Eco-solution 1
2 sets

Thickness: 12 mm, Weight: 3.1 kg
200 x 200 mm – 1 set
176 x 188 mm – 2 sets
200 x 188 mm – 2 sets Table 5: Monthly and Annual CO2 emissions produced in eco-
solution 1.
66
