Part III: Modeling Basics

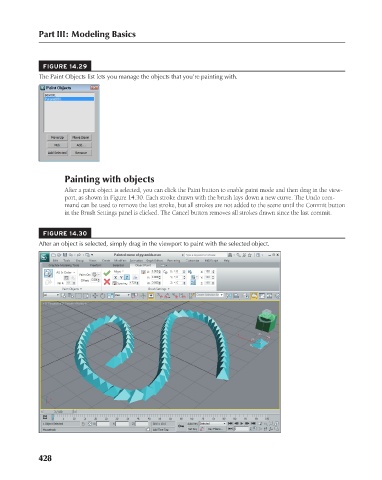

FIGURE 14.29
The Paint Objects list lets you manage the objects that you’re painting with.

Painting with objects
After a paint object is selected, you can click the Paint button to enable paint mode and then drag in the view-
port, as shown in Figure 14.30. Each stroke drawn with the brush lays down a new curve. The Undo com-
mand can be used to remove the last stroke, but all strokes are not added to the scene until the Commit button
in the Brush Settings panel is clicked. The Cancel button removes all strokes drawn since the last commit.

FIGURE 14.30
After an object is selected, simply drag in the viewport to paint with the selected object.

428
