Part VIII: Advanced Animation Techniques

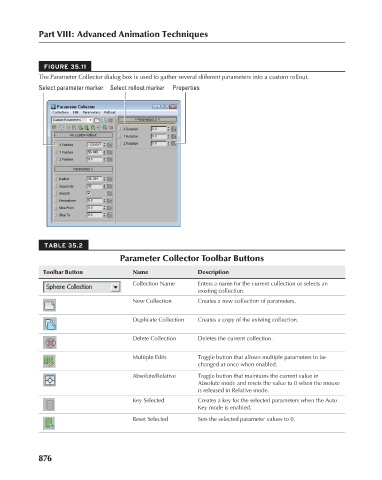

FIGURE 35.11
The Parameter Collector dialog box is used to gather several different parameters into a custom rollout.
Select parameter marker

TABLE 35.2 Select rollout marker Properties
Parameter Collector Toolbar Buttons
Toolbar Button Name Description
Collection Name Enters a name for the current collection or selects an
existing collection.
New Collection Creates a new collection of parameters.

Duplicate Collection Creates a copy of the existing collection.

Delete Collection Deletes the current collection.

Multiple Edits Toggle button that allows multiple parameters to be
changed at once when enabled.
Absolute/Relative Toggle button that maintains the current value in
Absolute mode and resets the value to 0 when the mouse
is released in Relative mode.
Key Selected Creates a key for the selected parameters when the Auto
Key mode is enabled.
Reset Selected Sets the selected parameter values to 0.

876
