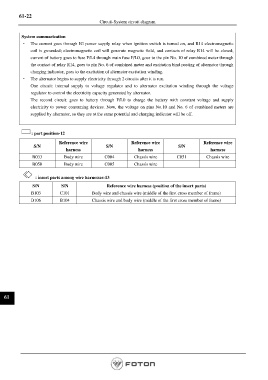

61-22
Circuit-System circuit diagram

System summarization
· The current goes through IG power supply relay when ignition switch is turned on, and R14 electromagnetic
coil is grounded; electromagnetic coil will generate magnetic field, and contacts of relay R14 will be closed;
current of battery goes to fuse F/L4 through main fuse F/L0, goes to the pin No. 10 of combined meter through
the contact of relay R14, goes to pin No. 6 of combined meter and excitation bind posting of alternator through
charging indicator, goes to the excitation of alternator excitation winding.
· The alternator begins to supply electricity through 2 circuits after it is run.
One circuit: internal supply to voltage regulator and to alternator excitation winding through the voltage
regulator to control the electricity capacity generated by alternator.
The second circuit: goes to battery through F/L0 to charge the battery with constant voltage and supply
electricity to power consuming devices. Now, the voltage on pins No.10 and No. 6 of combined meters are
supplied by alternator, so they are at the same potential and charging indicator will be off.

: part position-12

Reference wire Reference wire Reference wire
S/N S/N S/N
harness harness harness
B033 Body wire C004 Chassis wire C051 Chassis wire
B050 Body wire C005 Chassis wire

: insert parts among wire harnesses-13

S/N S/N Reference wire harness (position of the insert parts)
B103 C101 Body wire and chassis wire (middle of the first cross member of frame)
D106 B104 Chassis wire and body wire (middle of the first cross member of frame)

61
