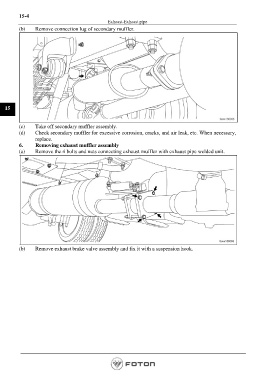

Page 592 - Workshop Manual - Aumark (BJ1051)
P. 592
15-4
Exhaust-Exhaust pipe
(b) Remove connection lug of secondary muffler.
15
(c) Take off secondary muffler assembly.
(d) Check secondary muffler for excessive corrosion, cracks, and air leak, etc. When necessary,
replace.
6. Removing exhaust muffler assembly
(a) Remove the 4 bolts and nuts connecting exhaust muffler with exhaust pipe welded unit.
(b) Remove exhaust brake valve assembly and fix it with a suspension hook.
Page 592
