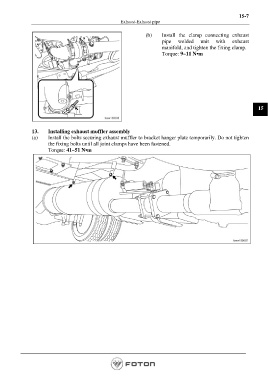

15-7
Exhaust-Exhaust pipe
(b) Install the clamp connecting exhaust
pipe welded unit with exhaust
manifold, and tighten the fixing clamp.
Torque: 9~11 N•m
15
13. Installing exhaust muffler assembly
(a) Install the bolts securing exhaust muffler to bracket hanger plate temporarily. Do not tighten
the fixing bolts until all joint clamps have been fastened.
Torque: 41~51 N•m
