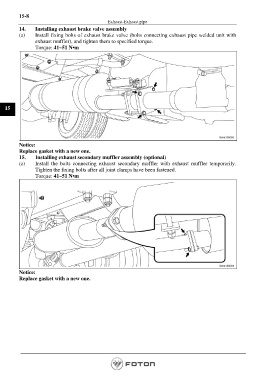

Page 596 - Workshop Manual - Aumark (BJ1051)

15-8
Exhaust-Exhaust pipe
14. Installing exhaust brake valve assembly
(a) Install fixing bolts of exhaust brake valve (bolts connecting exhaust pipe welded unit with
exhaust muffler), and tighten them to specified torque.
Torque: 41~51 N•m

15

Notice:
Replace gasket with a new one.
15. Installing exhaust secondary muffler assembly (optional)
(a) Install the bolts connecting exhaust secondary muffler with exhaust muffler temporarily.
Tighten the fixing bolts after all joint clamps have been fastened.
Torque: 41~51 N•m

Notice:
Replace gasket with a new one.

Page 596
