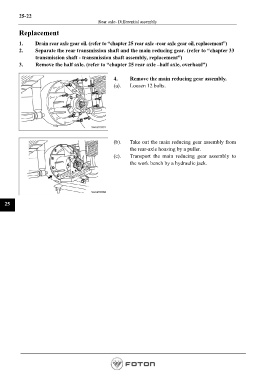

25-22
Rear axle- Differential assembly

Replacement

1. Drain rear axle gear oil. (refer to “chapter 25 rear axle -rear axle gear oil, replacement”)
2. Separate the rear transmission shaft and the main reducing gear. (refer to “chapter 33
transmission shaft - transmission shaft assembly, replacement”)
3. Remove the half axle. (refer to “chapter 25 rear axle –half axle, overhaul”)

4. Remove the main reducing gear assembly.
(a). Loosen 12 bolts.

(b). Take out the main reducing gear assembly from
the rear-axle housing by a puller.
(c). Transport the main reducing gear assembly to
the work bench by a hydraulic jack.

25
