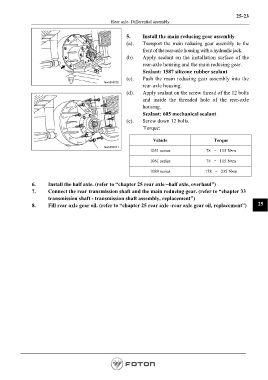

25-23
Rear axle- Differential assembly

5. Install the main reducing gear assembly
(a). Transport the main reducing gear assembly to the
front of the rear-axle housing with a hydraulic jack.
(b). Apply sealant on the installation surface of the
rear-axle housing and the main reducing gear.
Sealant: 1587 silicone rubber sealant
(c). Push the main reducing gear assembly into the
rear-axle housing.
(d). Apply sealant on the screw thread of the 12 bolts
and inside the threaded hole of the rear-axle
housing.
Sealant: 605 mechanical sealant
(e). Screw down 12 bolts.
Torque:

Vehicle Torque
1051 series 78 ～ 115 N•m

1061 series 78 ～ 115 N•m
1089 series 178 ～ 235 N•m

6. Install the half axle. (refer to “chapter 25 rear axle –half axle, overhaul”)
7. Connect the rear transmission shaft and the main reducing gear. (refer to “chapter 33
transmission shaft - transmission shaft assembly, replacement”)
8. Fill rear axle gear oil. (refer to “chapter 25 rear axle -rear axle gear oil, replacement”) 25
